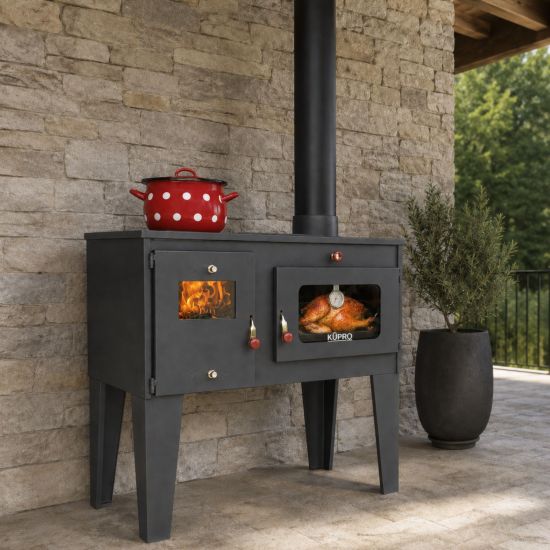

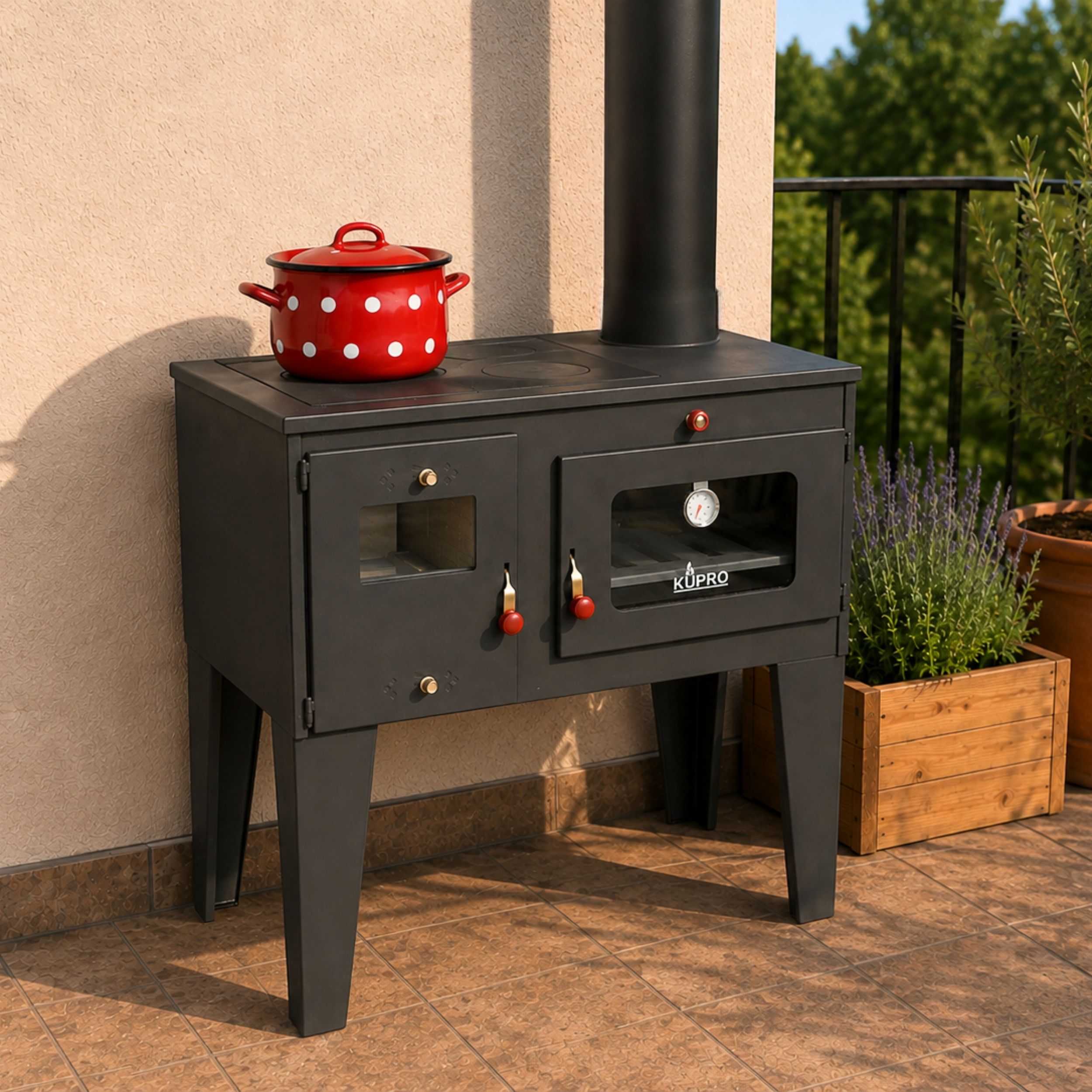

Heat up your home with this high-quality wood-burning stove. Thanks to its appearance, this stove is a real eye-catcher in your home.
This kitchen stove is perfect for heating and cooking at the same time, without any dependence on electricity or gas.

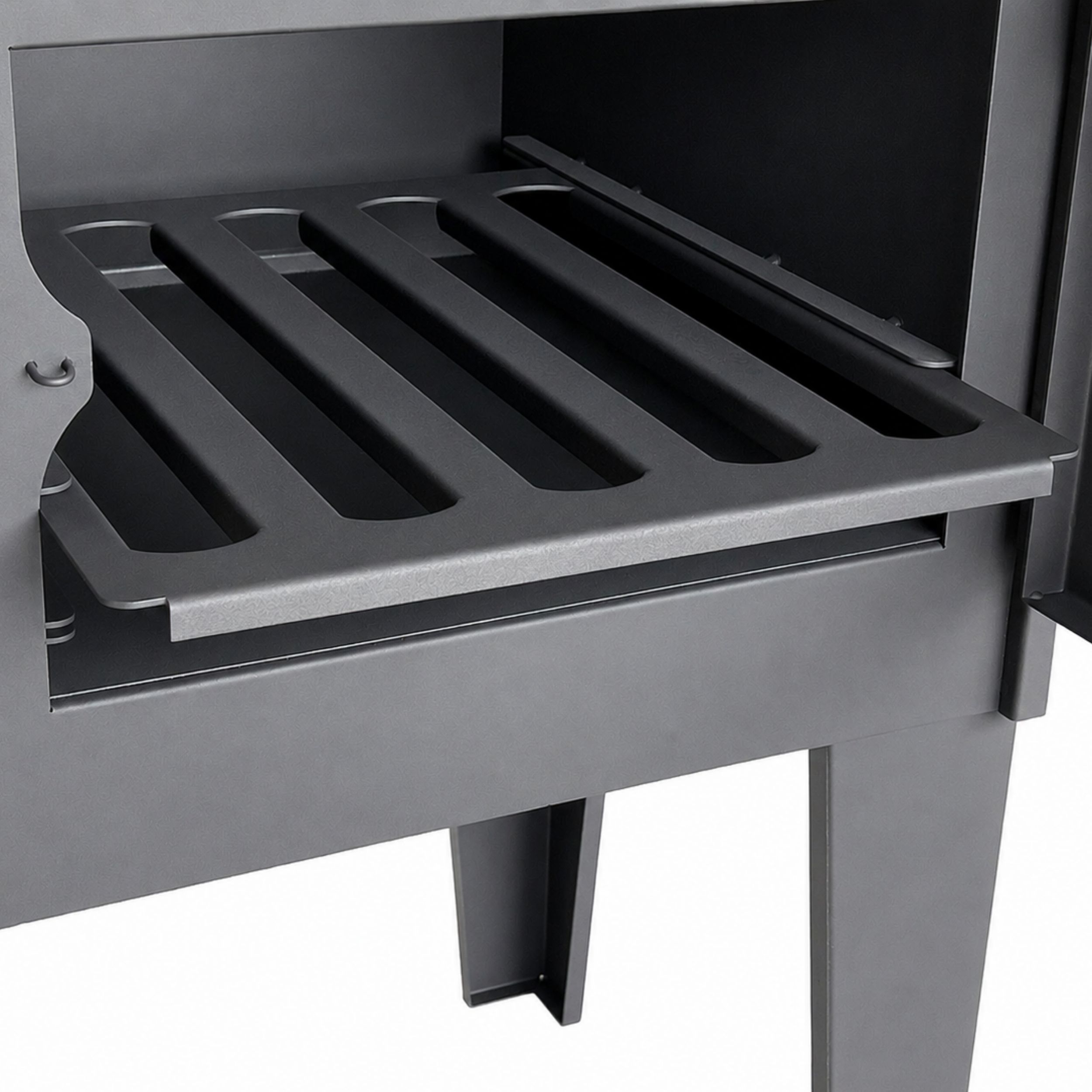

The large cooking surface and spacious baking compartment are perfect for boiling, baking, roasting or even steam cooking.
The kitchen oven has an optimum cooking height of 82 cm.

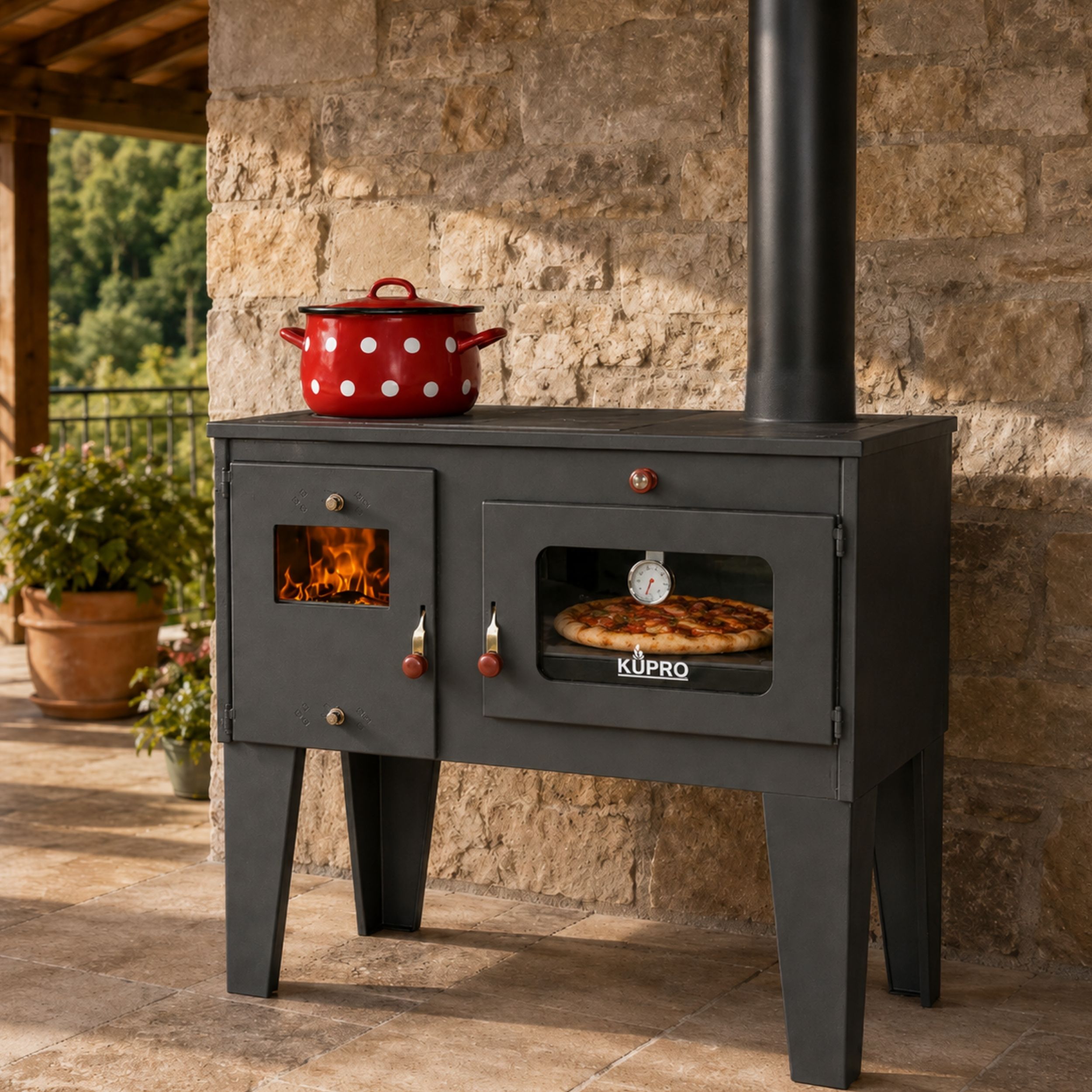

Use the kitchen oven as a pizza oven or for preparing cakes, pastries or warm desserts.
The handle above the baking compartment allows you to regulate the temperature in the baking compartment as required.
To check the temperature in the oven, a thermometer is attached to the glass so that you have a perfect overview at all times.

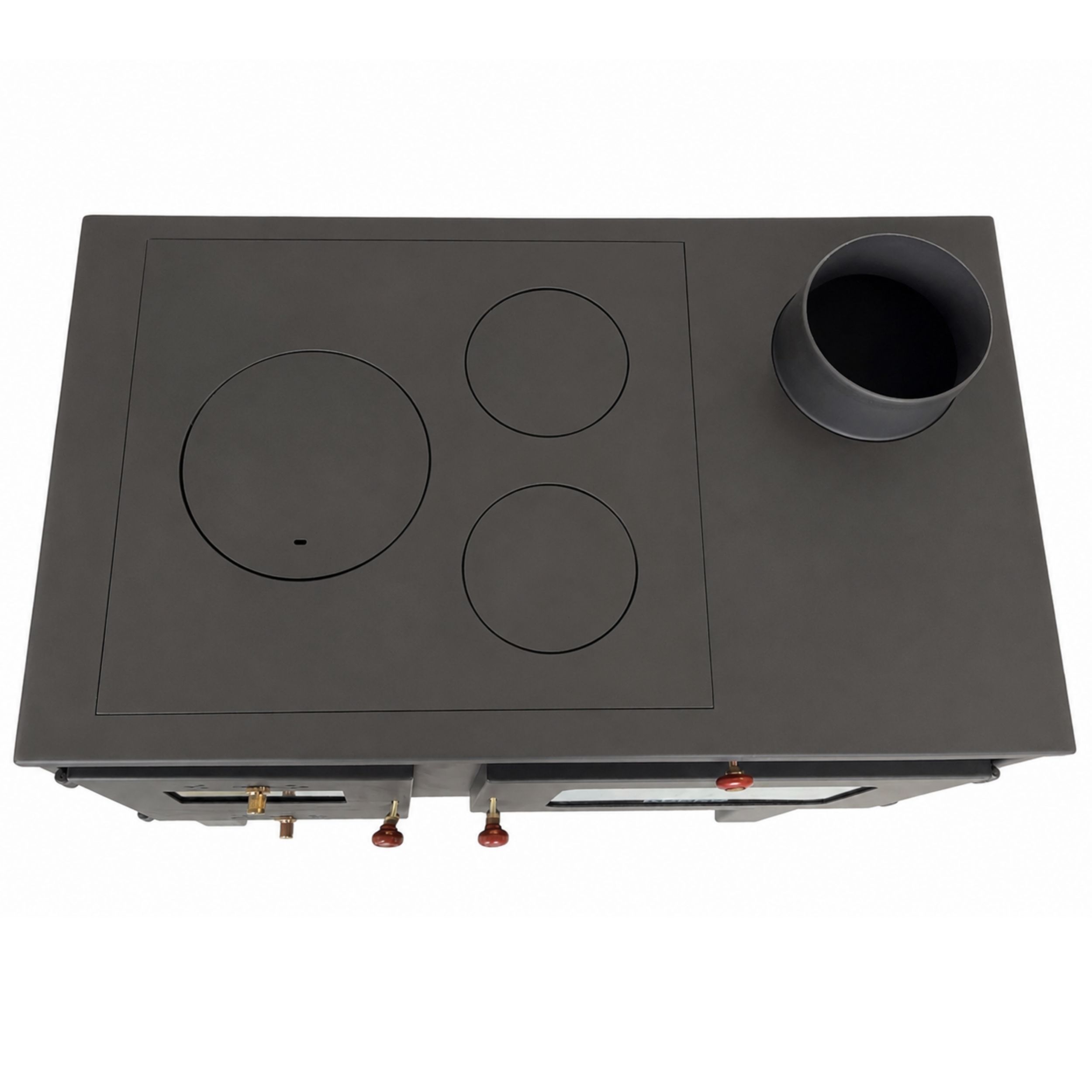

The cast iron hotplates can be removed to fry or cook directly over the flame, e.g. with a wok.

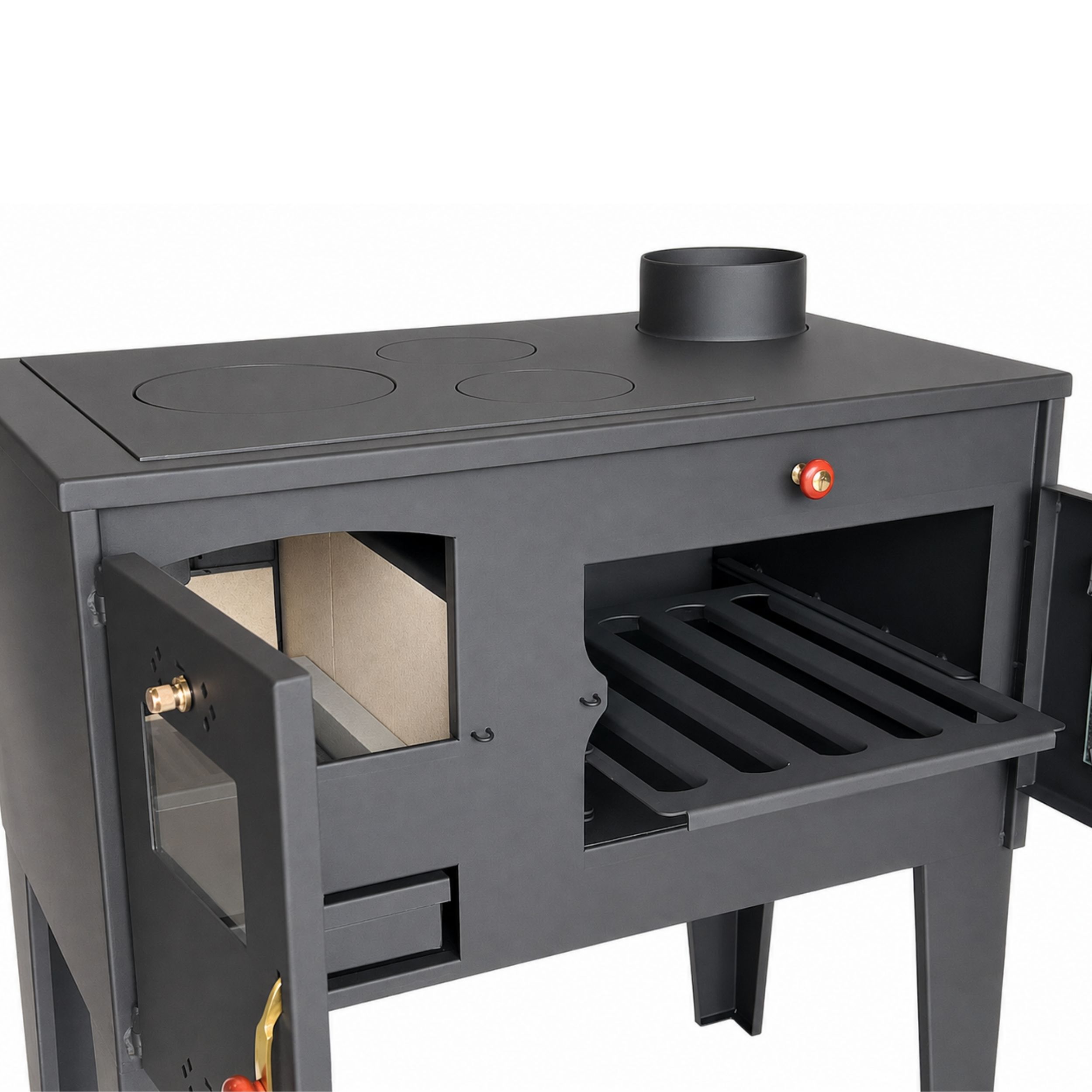

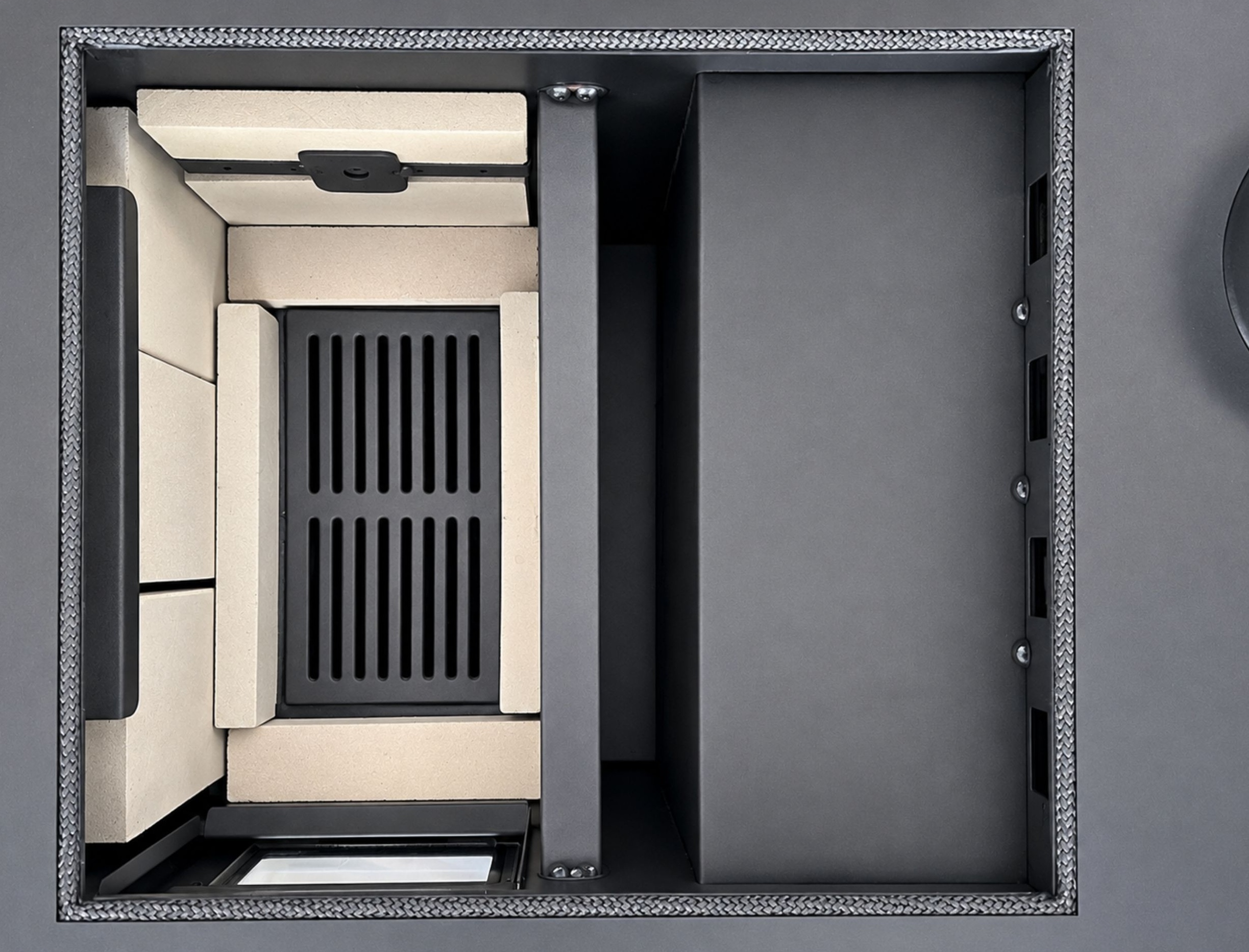

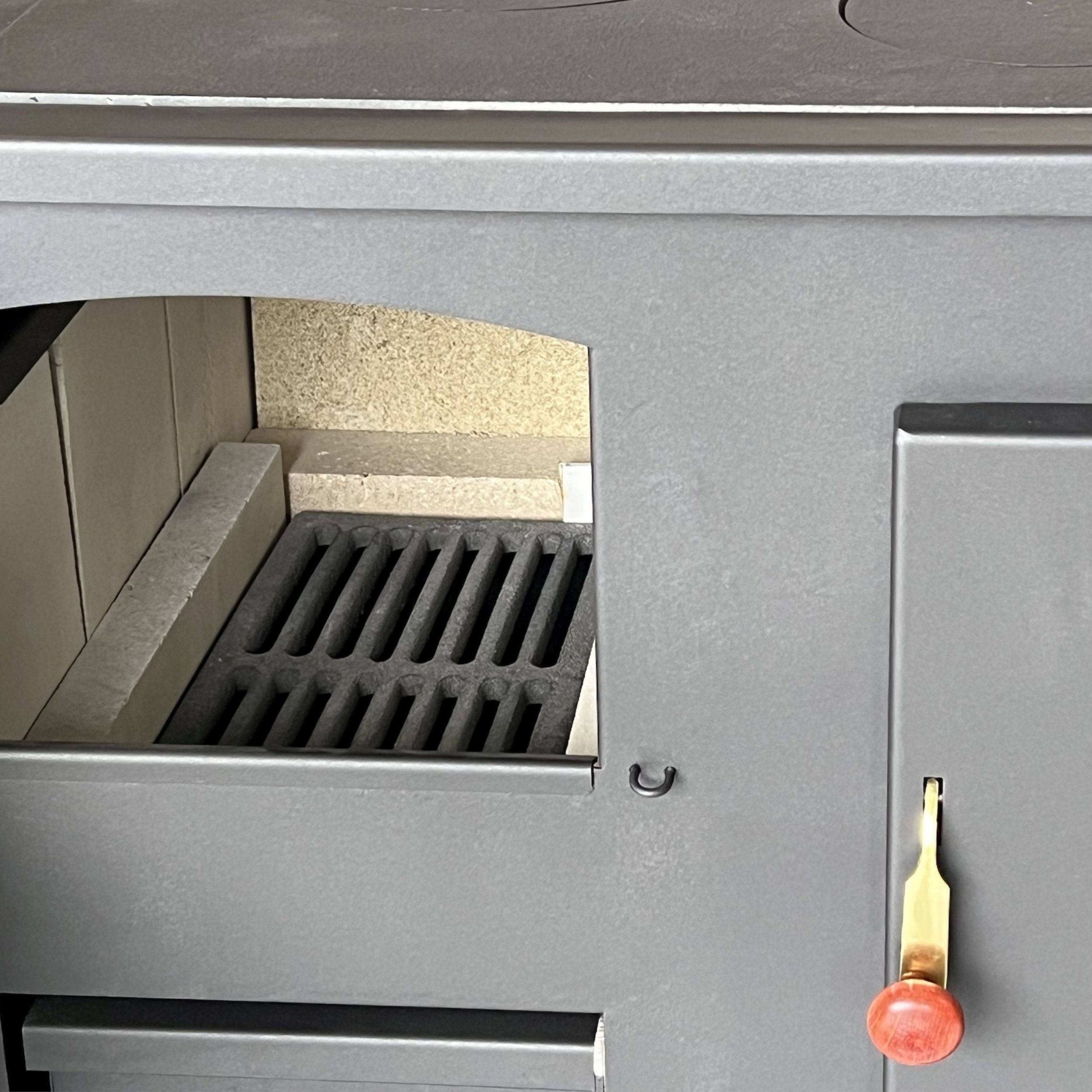

The spacious combustion chamber is fully lined with solid fireclay bricks (log length up to 40 cm possible).
Thanks to the integrated viewing window, you can observe the flames in the combustion chamber at all times.
The ash compartment can be removed for quick and easy cleaning.

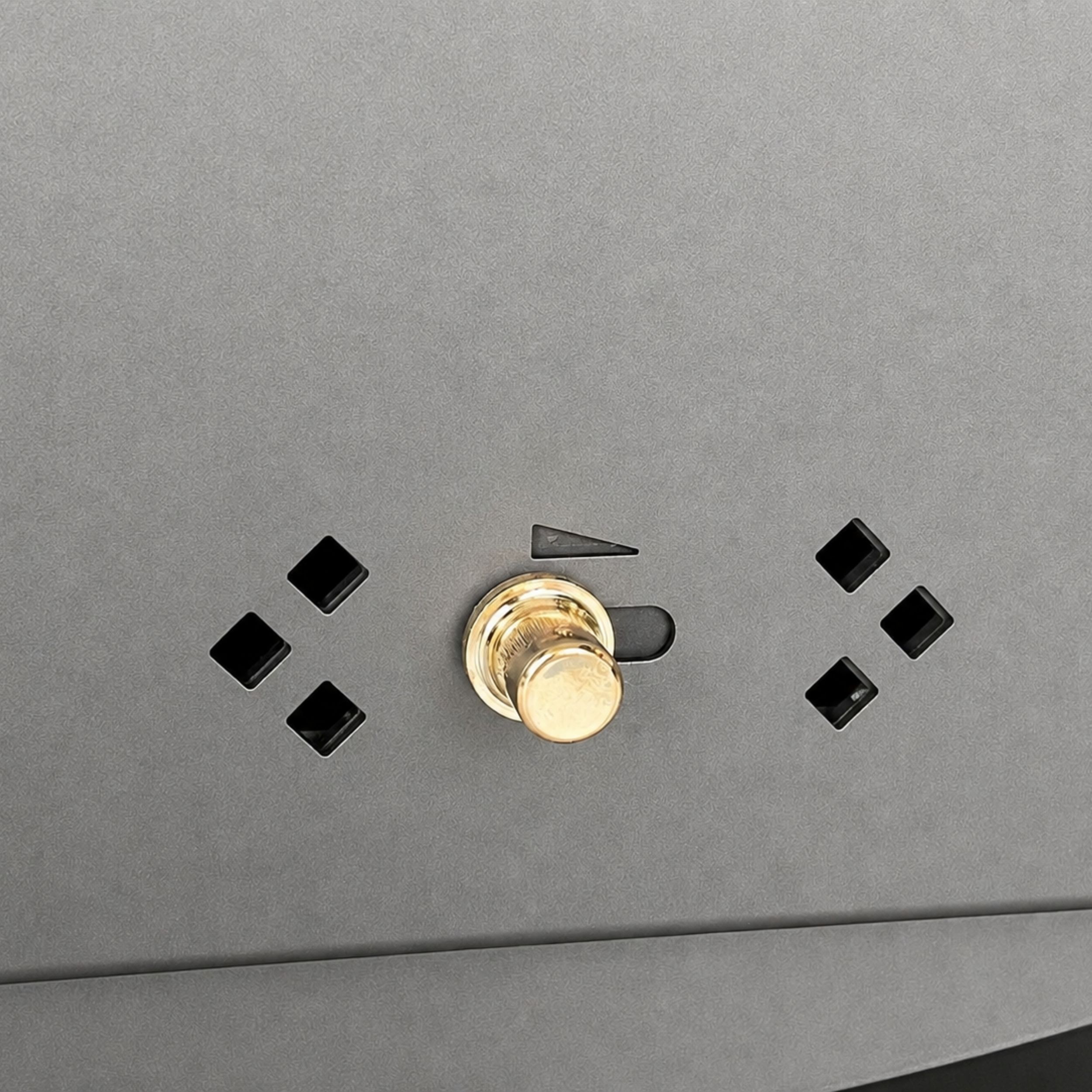

The separate primary and secondary air supply ensures optimum combustion.

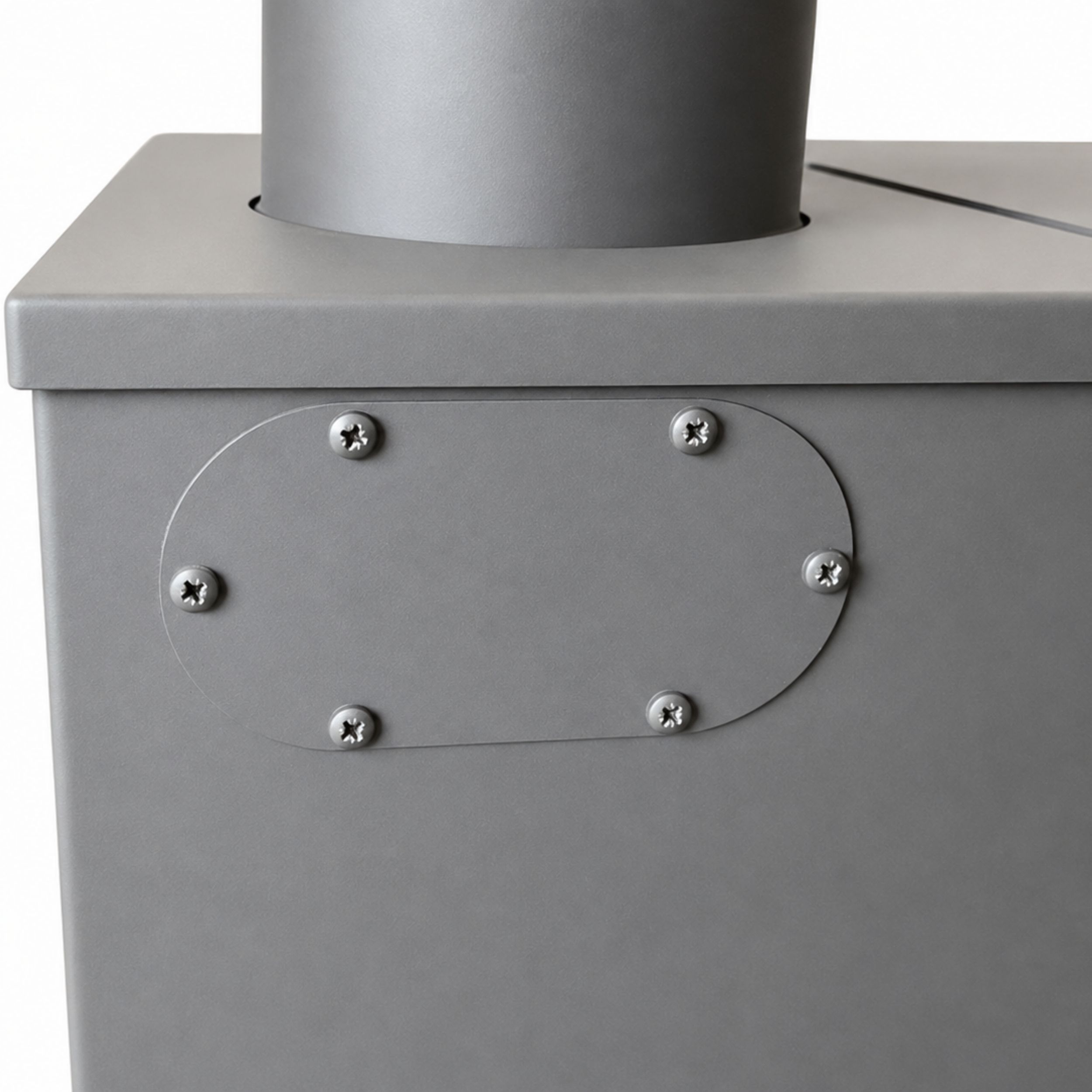

A cleaning opening is located at the rear of the stove.
The kitchen stove is approved for multiple use on the chimney, as the firebox opening is smaller than 500 cm2 (in accordance with DIN 18896).
Technical data:

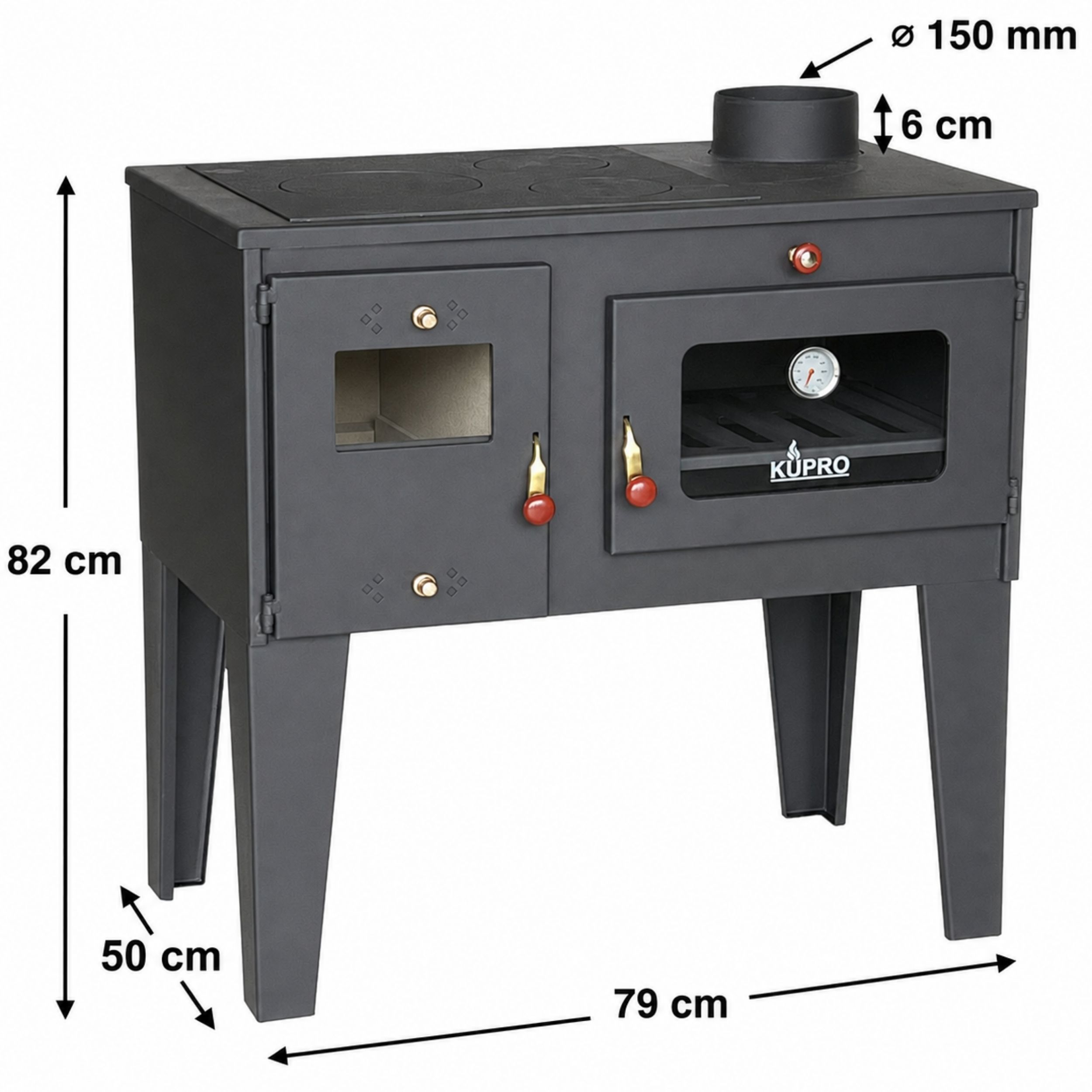

- Overall dimensions: Height 82 cm, width 79 cm, depth 50 cm
- Combustion chamber: Width 22 cm, height 24 cm, depth 41 cm
- Baking compartment: Width 37 cm, height 22 cm, depth 44 cm
- Cast iron plate: Length: 46 cm, width 40 cm
- Diameter hearth plates: 1x 20 cm (cast iron), 2 x 13 cm (cast iron)
- Diameter flue pipe: Ø 150 mm
- Weight: 71 kg
- Colour: black
- Wood consumption per hour: 1.8 kg
- Minimum distance to combustible materials from the side: 55 cm
- Minimum distance to combustible materials to the rear: 55 cm
- Minimum distance to combustible materials to the floor from the fireplace: 28.4 cm
- Minimum distance from combustible materials to the ceiling: 95 cm
- Nominal output: 6.04 kW
- Output range: 4-7 kW
- Efficiency: 78.9 %
- Exhaust gas temperature: 155 C°
- Dust emission re. to 13 % O2: 35.9 mg/Nm3
- Exhaust gas mass flow: 8.9 g/s
- CO emission to 13 % O2: 1466 mg/Nm3
- NOx content to 13 % O2: 100.6 ma/Nm3
- OGC emission to 13 % O2: 111.6 ma/Nm3
- OGC emission to 13 % O2: 100.6 ma/Nm3
- OGC emission to 13 % O2: 111.5 ma/Nm3 to 13 % O2: 111.3 mg/Nm3
- Minimum delivery pressure: 13 Pa
- Energy efficiency class: A
- Suitable fuels: logs, wood briquettes
- Complies with BImSchV stage 2 for Germany and 15A-BVG for Austria.
- Construction type 1 - Multiple occupancy on the chimney is possible, as the combustion chamber opening is smaller than 500 cm2 (according to DIN 18896).
- Delivery is by a forwarding agent, free kerbside.
