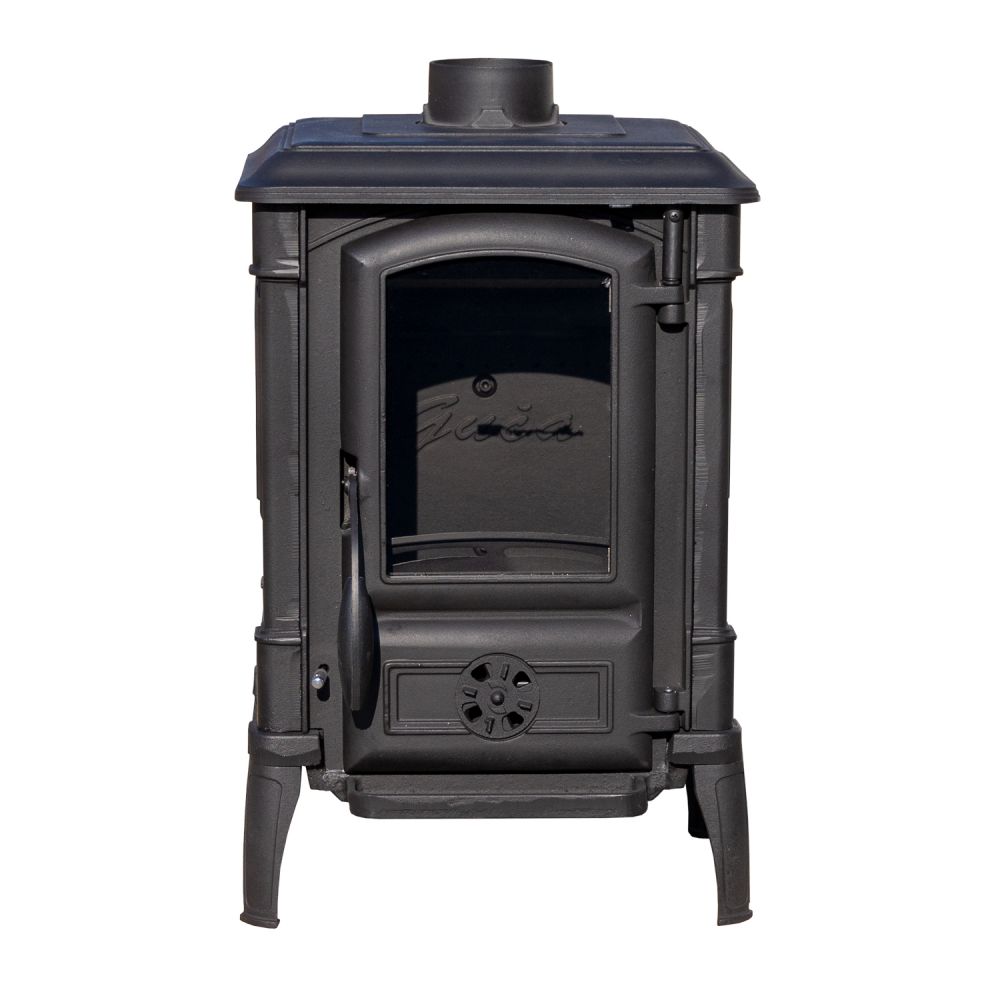

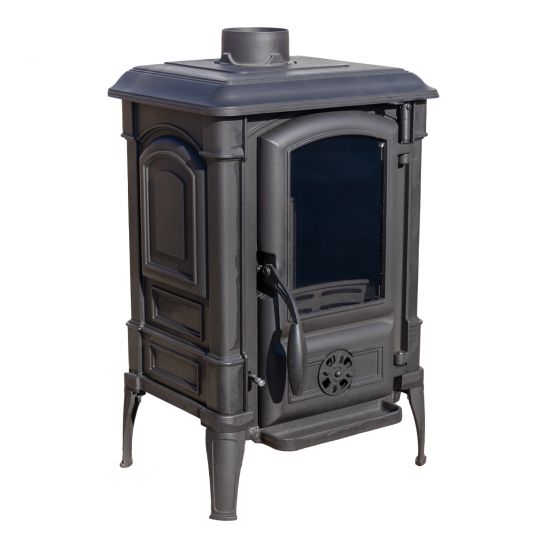

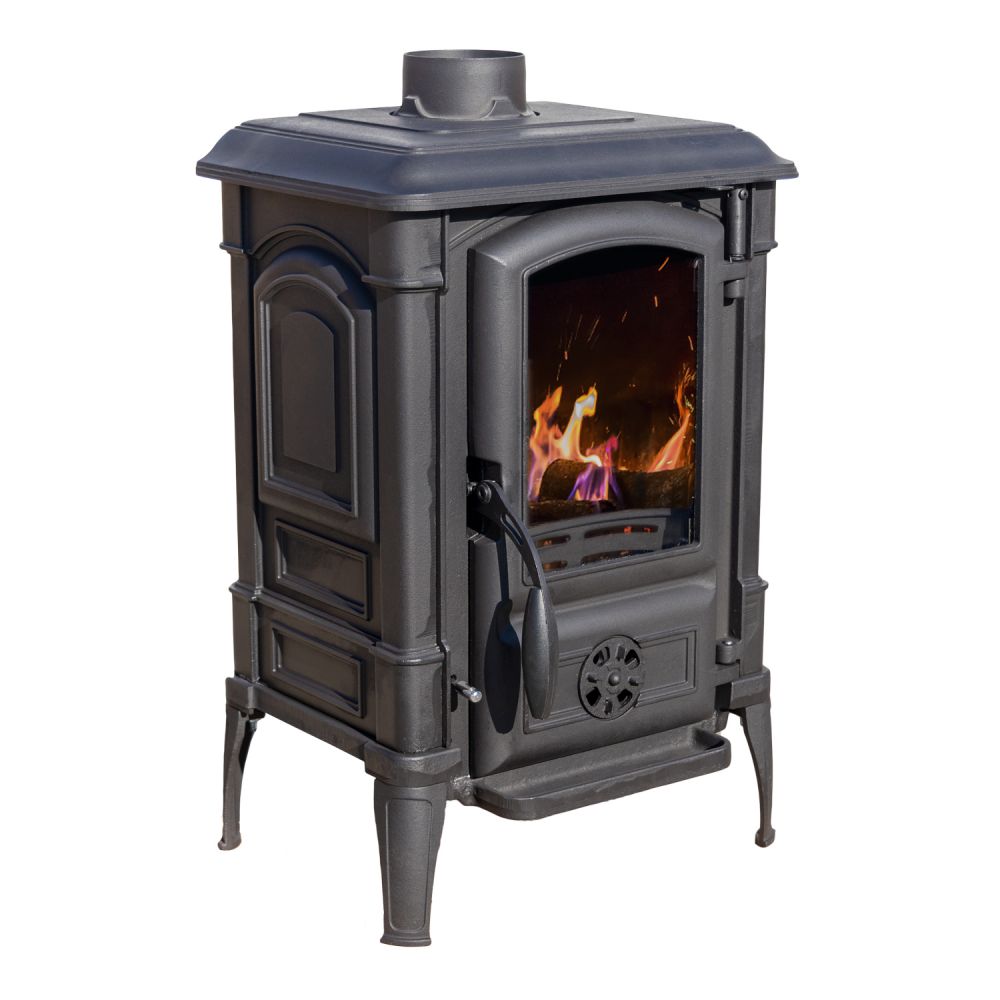

With this stove, made entirely of cast iron, you can enjoy long-lasting and pleasant radiant heat.
Stoves made of cast iron are extremely temperature-resistant, durable and stable.
Thanks to its antique and elegant appearance, this stove blends seamlessly into any room.

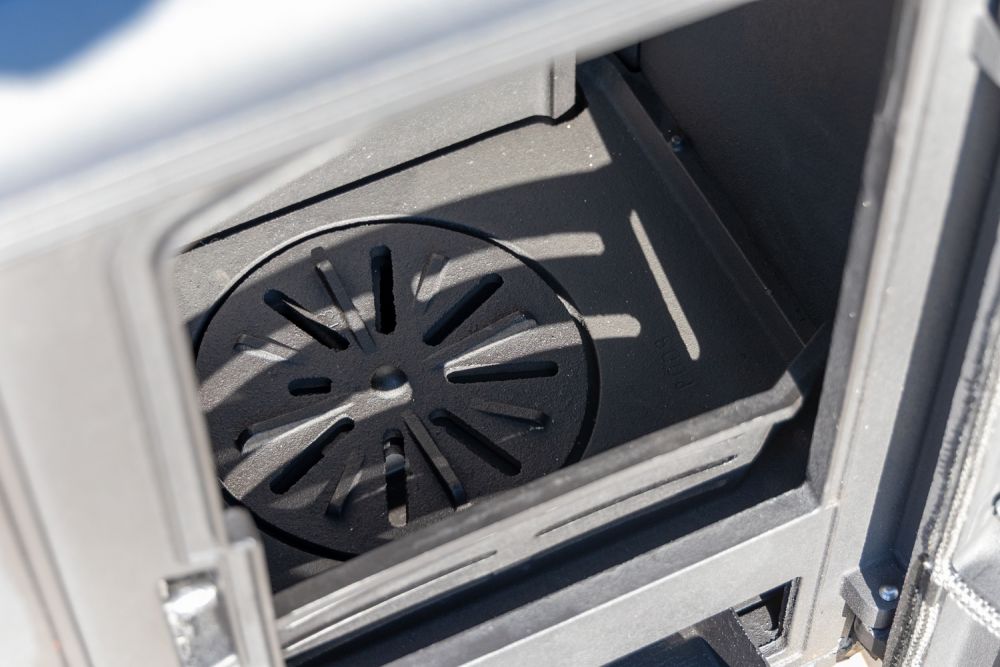

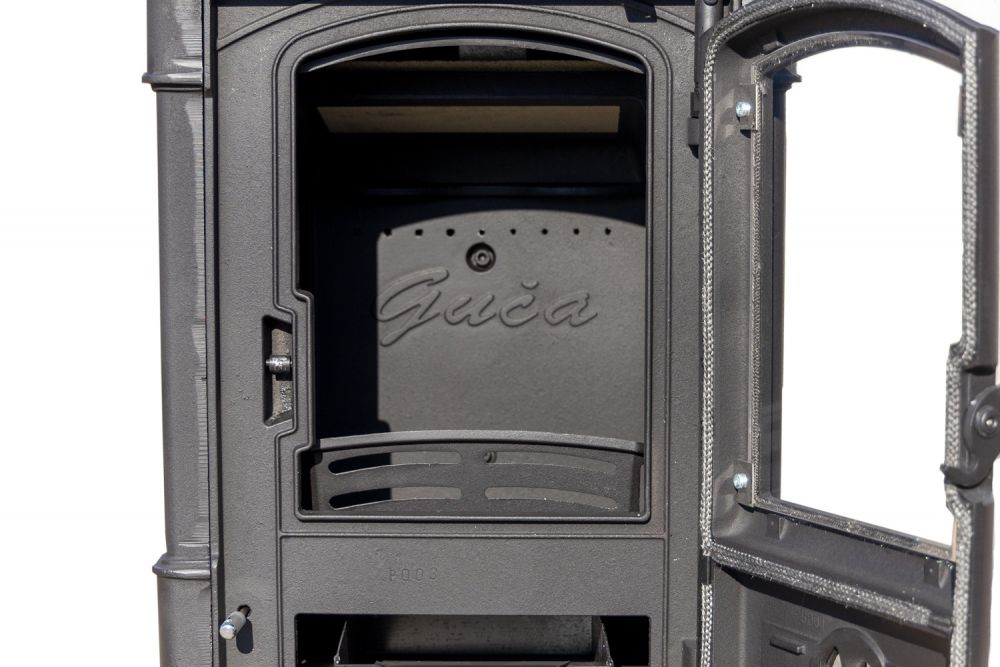

Combustion chamber fully lined with cast iron.

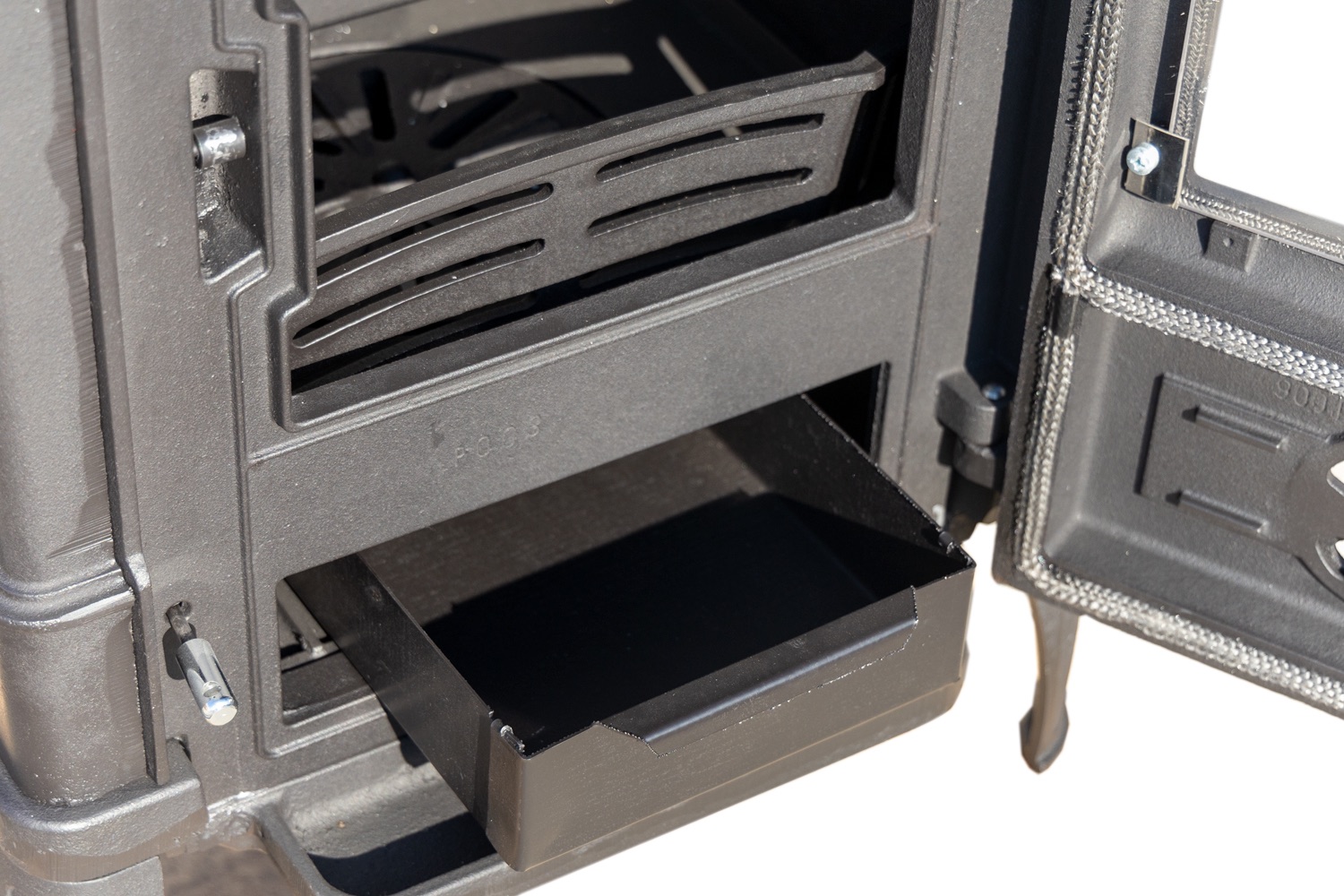

Integrated viewing window for observing the flame. Removable ash compartment.
The smoke outlet can be positioned on either of the following two sides, at the top and on the rear wall.

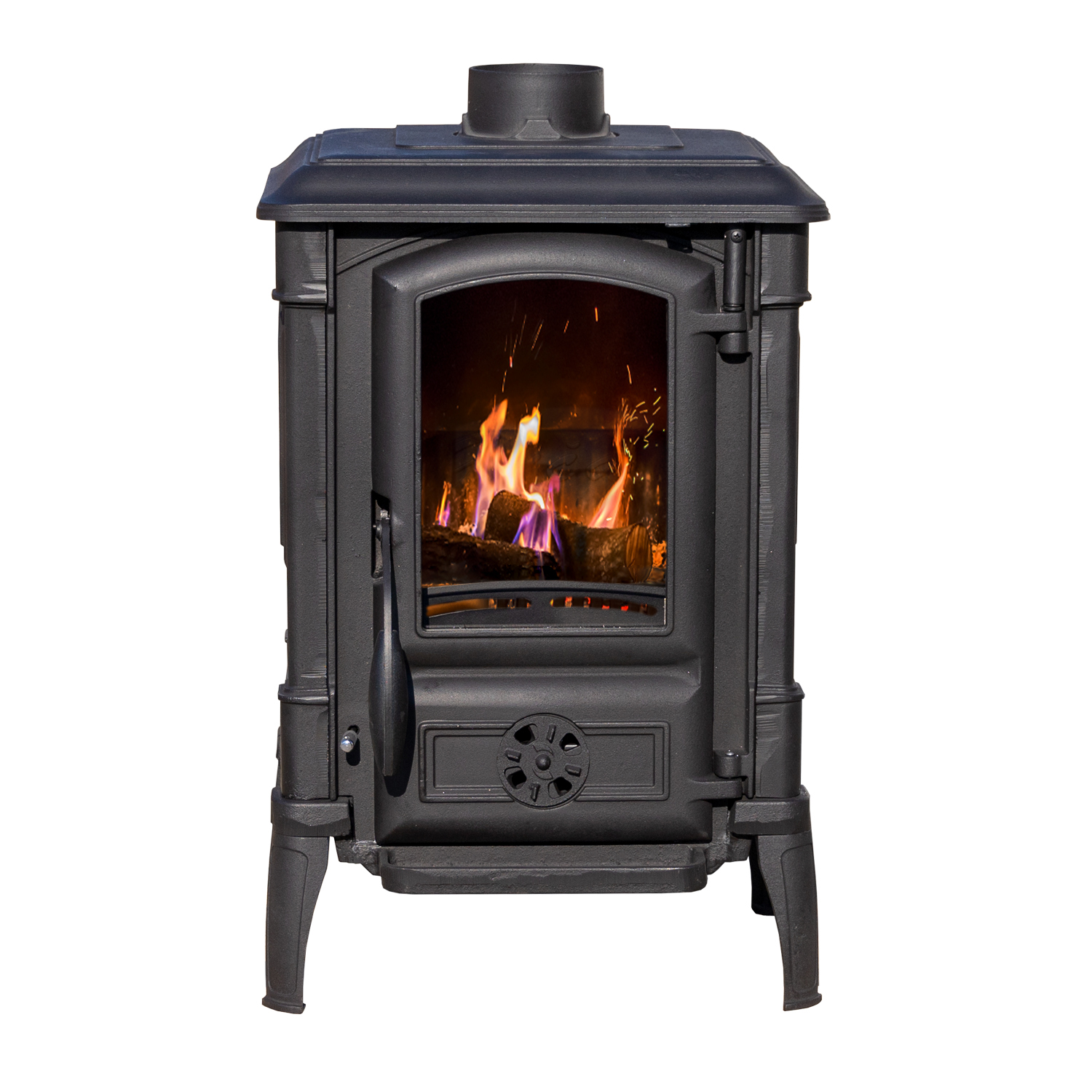

Thanks to the fireproof glass on the door to the firebox, you can light up your rooms with the atmosphere of a fireplace.
The design of this stove enables precise control of the temperature intensity, as well as easy combustion and ash cleaning.
The easy-to-use draught control allows the user to quickly control the intensity of the fire.

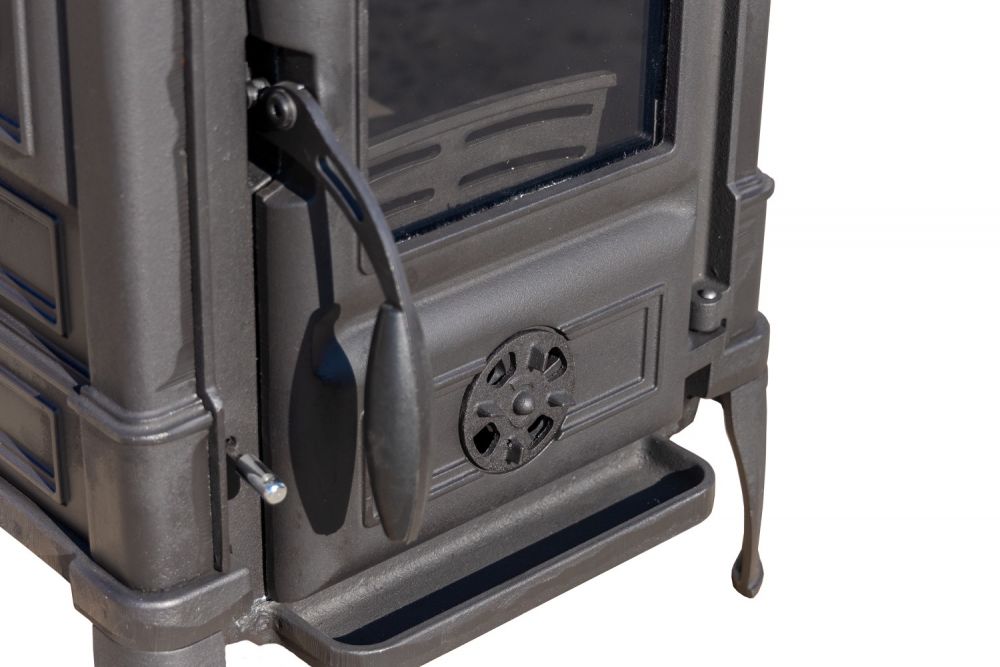

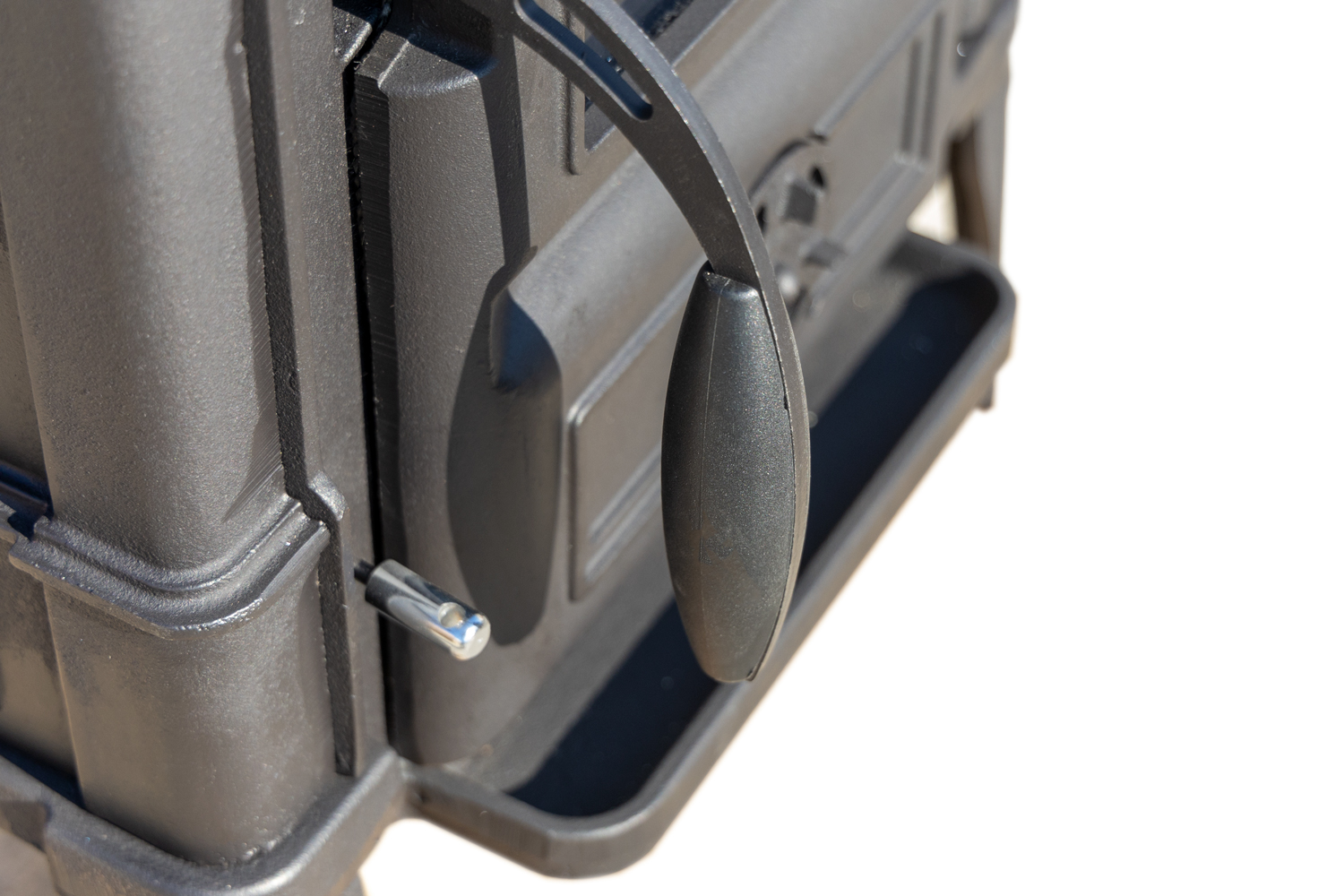

You can clean the ash from the outside by pressing / pulling the handle provided for this purpose on the left-hand side of the front of the stove.
Adjustable internal air supply.
Suitable for continuous and timed firing.
Technical data:
- Overall dimensions: height 73 cm, width 48 cm, depth 45 (with handle) cm, height with connection piece 77.5 cm
- Combustion chamber: width 35 cm, depth 25 cm, height 32 cm
- Flue pipe diameter: Ø 120 mm
- Weight: 115 kg
- Colour: Black
- Minimum distance to combustible materials from the side: 40 cm
- Minimum distance to combustible materials from the rear: 40 cm
- Minimum distance to combustible materials from the front: 80 cm
- 6.5 kW heat output / heat output, suitable for up to 70 - 120 m³ room volume.
- Suitable for small and large rooms. The actual output of the stove depends on the type and quantity of fuel (3.0 - 7.0 kW)
- Efficiency: 80 %
- Flue gas temperature: 268 C°(at nominal heat output)
- Flue gas mass flow 5.7 g/s
- Minimum conveying pressure 12 Pa
- Dust emission re. to 13 % O2: 35 mg/Nm3
- CO emission to 13 % O2: 0.0785 %
- CO emission to 13 % O2: 982 mg/Nm3 to 13 % O2: 982 mg/Nm3
- NOx emission at 13 % O2: 99 mg/Nm3
- OGC emission at 13 % O2: 74 mg/Nm3
- Energy efficiency class: A+
- Suitable fuels: logs, wood briquettes
- Complies with the new BImSchV Stage II standard for Germany.
- Complies with 15a B-VG for Austria.
- Complies with EU Regulation 305/2011.
- Complies with DIN EN 13240:2006.
- Construction type 2 - Multiple occupancy on the chimney is not possible.
- Delivery is by a forwarding agent, free kerbside.
